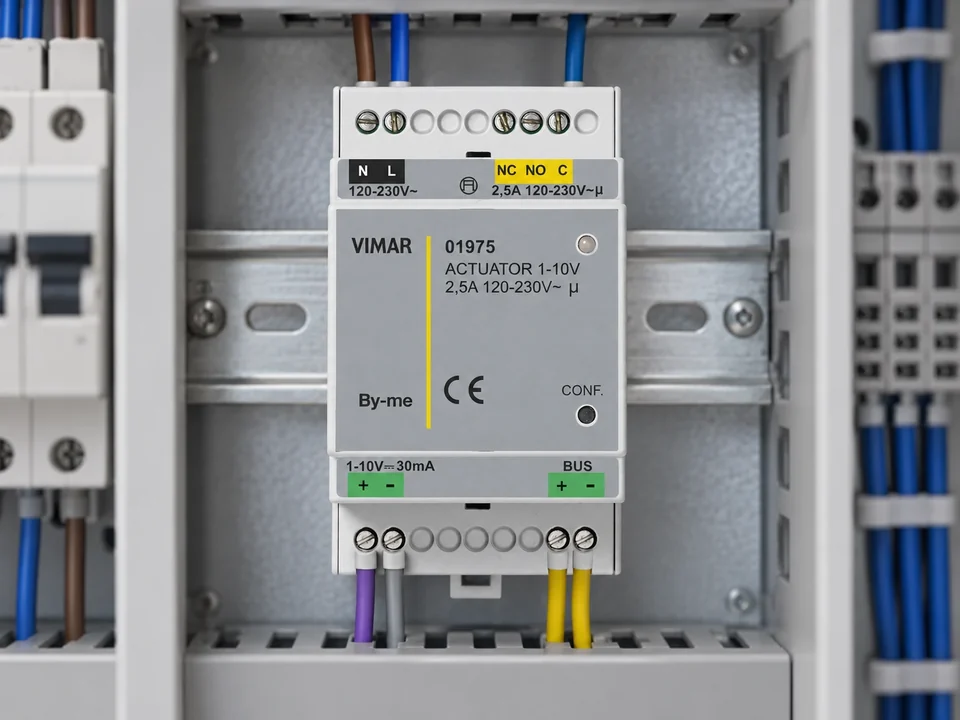

Vimar actuator 1-10Vdc LED 120-230V Marine

Explore this design from our vimar marine range.

Technical specifications

Supply

120–230 V AC, 50/60 Hz

IP rating

IP20

Mounting

DIN rail; 3 × 17.5 mm modules

Dimensions (L × W × H)

53.5 × 60.7 × 90 mm

Control output

1–10 V DC, 30 mA

Relay

Change-over, 2.5 A
